IGA-001

Gravimetric Gas Sorption Analyzer

High accuracy gravimetric sorption analyzer, for precise characterization of gas sorption equilibria & kinetics

Unrivalled measurement precision, accuracy and repeatability
Complete isothermal, isobaric and kinetic analysis from vacuum to 20 bar
Fast and accurate analysis of equilibria and kinetics using the IGA method

Key features

Versatile and suitable for use with a wide range of gases, materials and methods
Active pressure regulation from sub millibar to 20 bar
Fully programmable for advanced method development
Unrivalled long term stability and continuous weight measurement
Sample temperatures from 77 K to 1000 °C
Fully upgradeable for dynamic and vapor sorption capability

Applications

IGA analyzers are widely regarded as the benchmark for gravimetric sorption analyzers and are used in an extensive range of applications. Typical applications areas for IGA-001 include:

Hydrogen and energy storage
Gas solubility in ionic liquids
Carbon capture and storage
Gas separation and purification
Porous materials research

Measurement types

Typical measurement types for IGA-001 include:

Pure gas adsorption isotherms
Gas adsorption capacity determination
Thermodynamic and kinetic studies
Specific surface area (BET) determination

Description

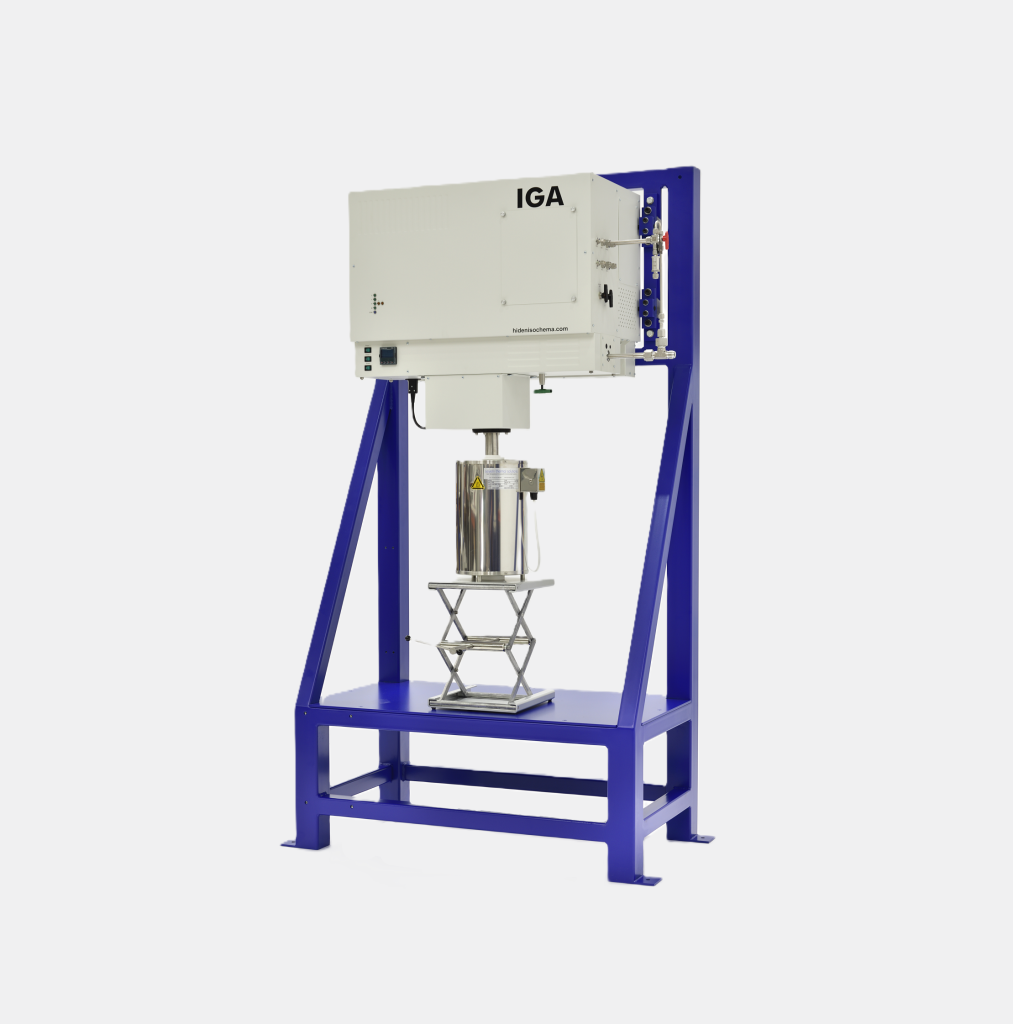

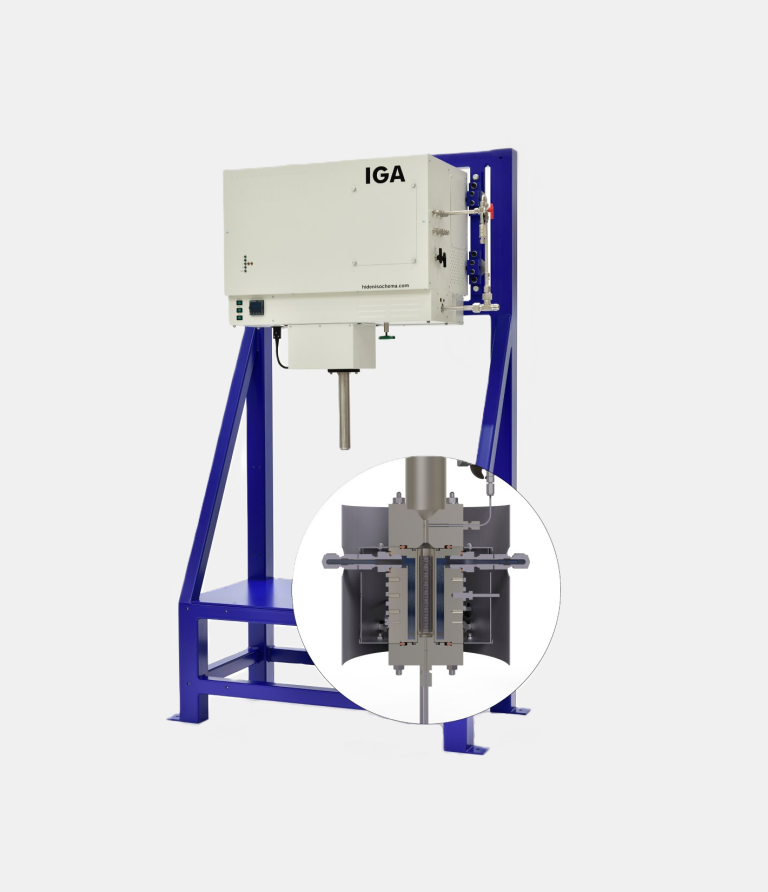

Introducing IGA-001

The IGA-001 is a dedicated single component gas sorption analyzer for the study of gas interactions with both solids and liquids. Incorporating an ultra-sensitive microbalance, the IGA-001 measures changes in sample mass as a function of temperature and pressure. The unique IGA method analyzes real time gravimetric data to determine kinetic parameters and simultaneously predict sorption equilibrium.

Request a quote Download Brochure

Specifications

Weight

Balance capacity 1 g (standard) or 5 g (optional)
Weighing range0 – 200 mg (standard)
Weighing resolution 0.1 µg (0.2 µg with optional 5 gram balance)
Weighing stability ± 1 µg long term (± 0.1 µg short term)

Pressure

Design pressure10 bar (standard) or 20 bar (optional)
Typical accuracy ± 0.05 % of range
Transducer ranges (up to 3 per system)1, 10, 20 bar, 100 mbar
Base vacuum < 10⁻⁶ mbar
Typical setpoint regulation accuracy ± 0.02 % of range

Temperature

Measurement range 77 – 1273 K
Temperature sensors Platinum Resistance Thermometer (Pt100) or Type-K Thermocouple
Measurement accuracy ± 0.1 K (Pt100) or ± 1 K (Type-K)
Typical setpoint regulation accuracy:
Recirculating waterbath ± 0.05 K
Furnace options ± 0.1 – 1 K
Linear ramp TGA option 0.05 – 20 K/min programmable
Balance temperature regulation accuracy ± 0.1 K

Application Data

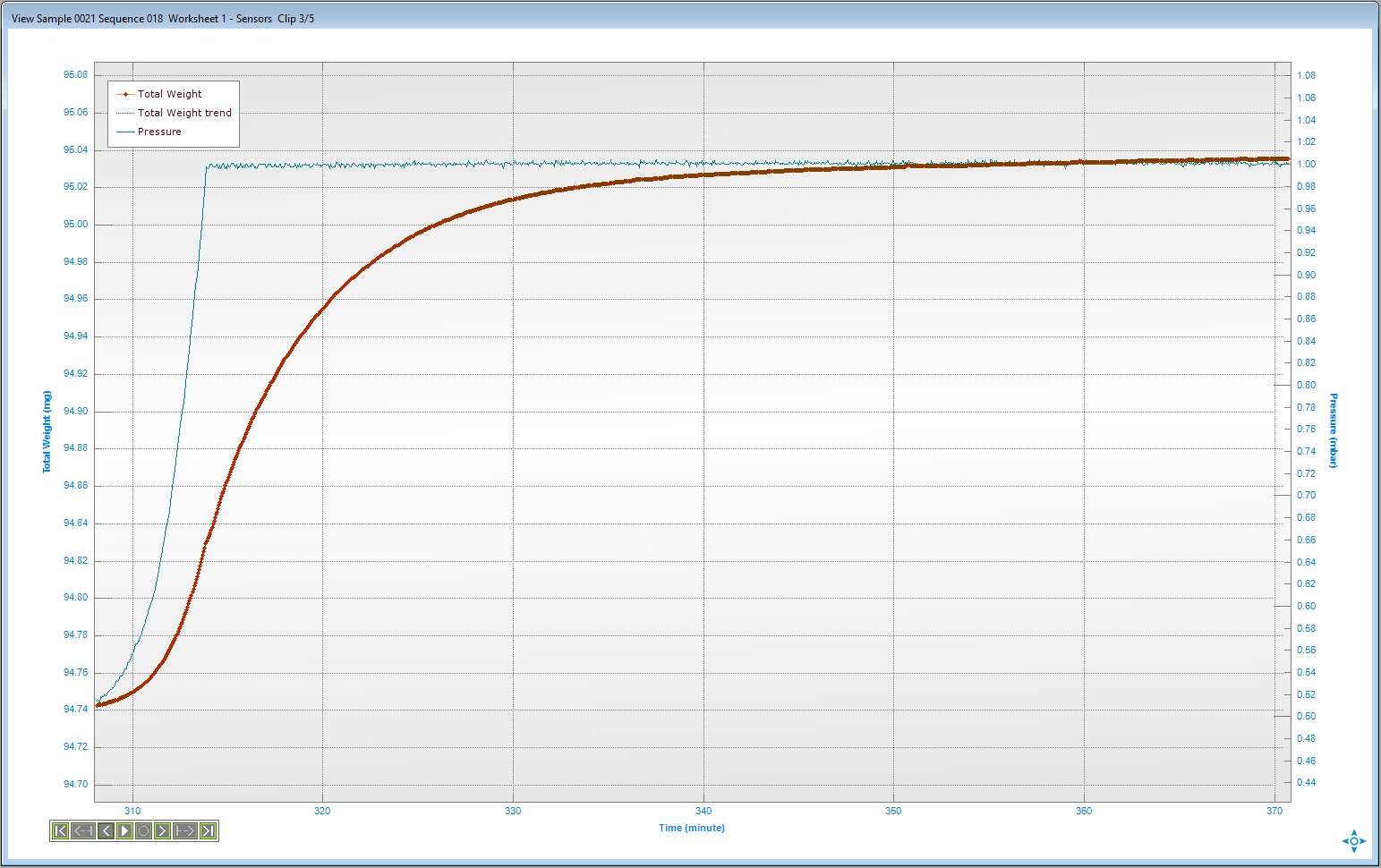

Real Time Kinetic Data

Real time weight data recorded for carbon dioxide sorption on a commercial zeolite (13X). The pressure is actively controlled at 1 mbar during the sorption process

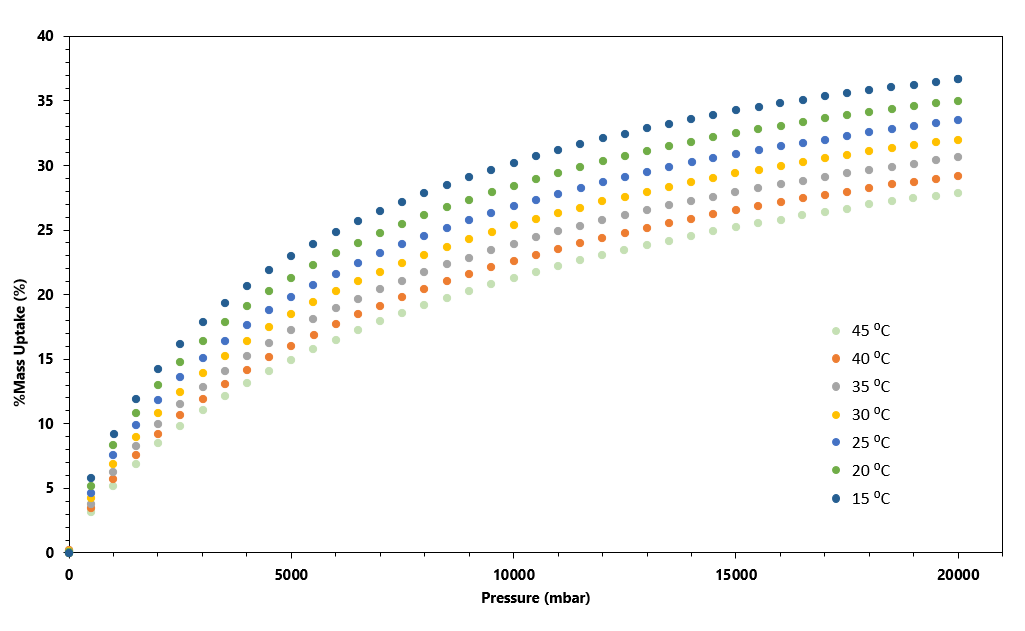

Multiple Temperature Isotherms

A set of carbon dioxide isotherms at various temperatures on an activated carbon, ranging from 15 – 45 ⁰C with 5 ⁰C increments

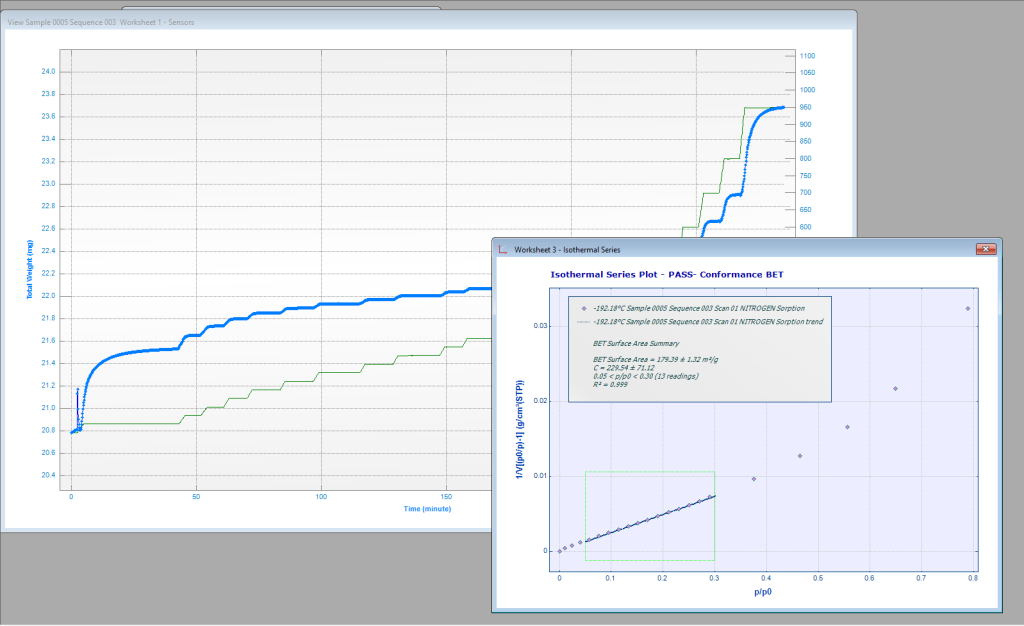

Specific Surface Area (BET) Determination

Determination of the BET surface area of a controlled pore glass standard reference material supplied by NIST

Resources and Downloads

Learn more about the latest IGA developments.

Improved Conformance Testing of Gravimetric Gas Sorption Analysis New MultiPort Inlet Selector for Gas Sorption Analyzers
