Automated Membrane Permeation Analyzer

Dedicated membrane testing reactor for gas permeable membranes

Automated membrane gas permeation reactor with integrated mass spectrometry
Optimized for operation to 10 bar with minimized dead volume
Precision engineered membrane cell with unique integral support structure

Request a quote Download Brochure

Key features

Operating pressure to 10 bar

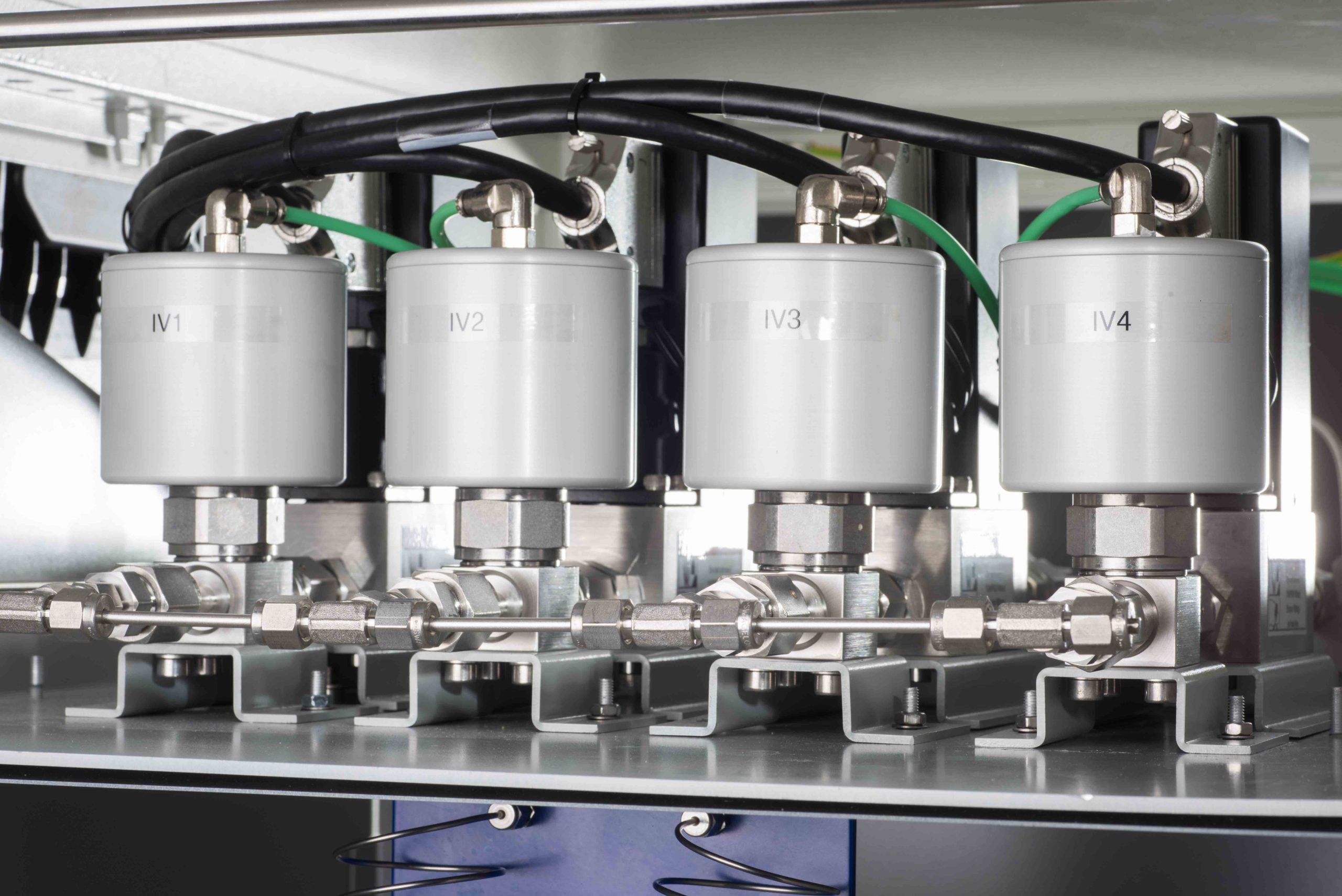

Ultralow dead volume automated switching valve
Multiple gas inlets compatible with a range of gases
Wide temperature range with options for 120 °C and 300 °C
Fully integrated close coupled mass spectrometer
Bespoke reactor design options

Measurement types

Co-current and cross flow modes
Permeation and selectivity studies

introduction

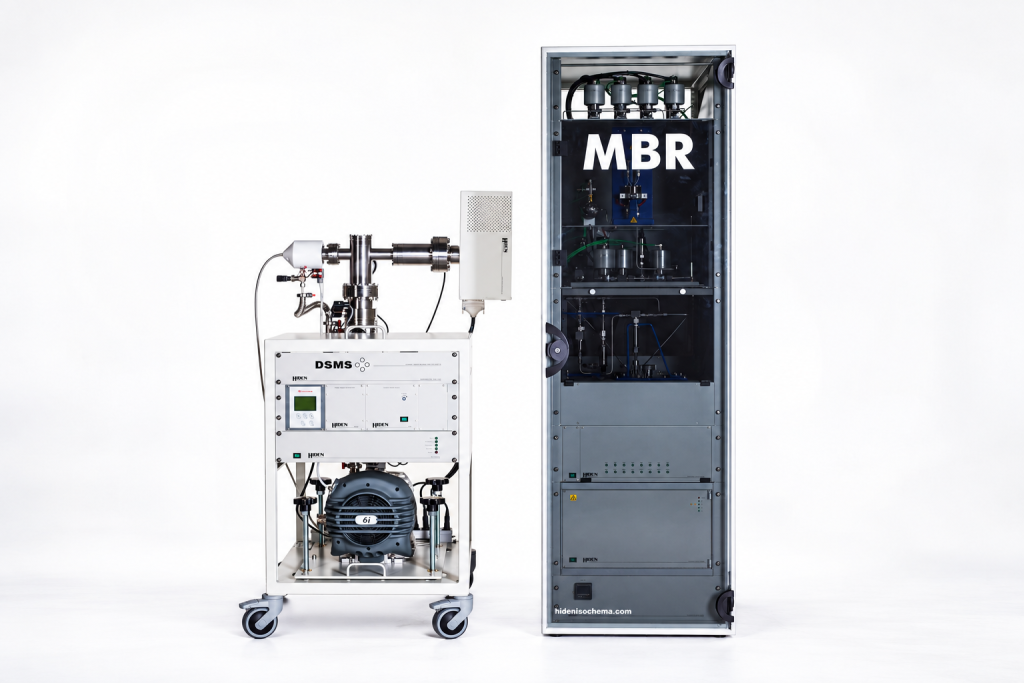

The MBR is a dedicated membrane testing reactor for studying the selective gas permeation properties of membrane materials for separation and purification applications. It is a fully automated system, and is supplied with an integrated close-coupled mass spectrometer.

REQUEST A QUOTE

Applications

The MBR is designed for studying the selective gas permeation properties of membrane materials for separation and purification applications. It can be configured to support operation in either co-current flow mode and cross flow mode to suit specific applications requirements.

In co-current flow mode, a gas mixture is applied upstream of the membrane at a controlled pressure and composition, while a dedicated helium flow flushes the downstream side. The gas composition is then analyzed to assess the separation performance of the membrane material.

Alternatively, in cross flow mode, the MBR is operated without downstream sweep gas and the performance of the membrane is determined by comparing the downstream and upstream gas compositions.

Membranes
View Application
Polymers
View Application
Gas Separation
View Application

Specifications

Temperature

Maximum temperature120 ⁰C (300 ⁰C optional)
Temperature sensorsType K thermocouple (with cold junction compensation)
Pt100
Typical accuracy± 1 ⁰C (Type K)
± 0.1 ⁰C (PRT)

Pressure

Maximum pressure10 bar
Pressure ranges1 bar, 10 bar
Accuracy± 0.05% of range
Inlets2 – 6 (depending on configuration)

Mass Spectrometer

Inlet pressure range100 mbar – 2 bar
Detector typeTriple Filter Dual Faraday/Electron Multiplier
Detection mass range1-300 AMU (or customer specified)
Detector sensititvty5 ppb, subject to spectral interference
