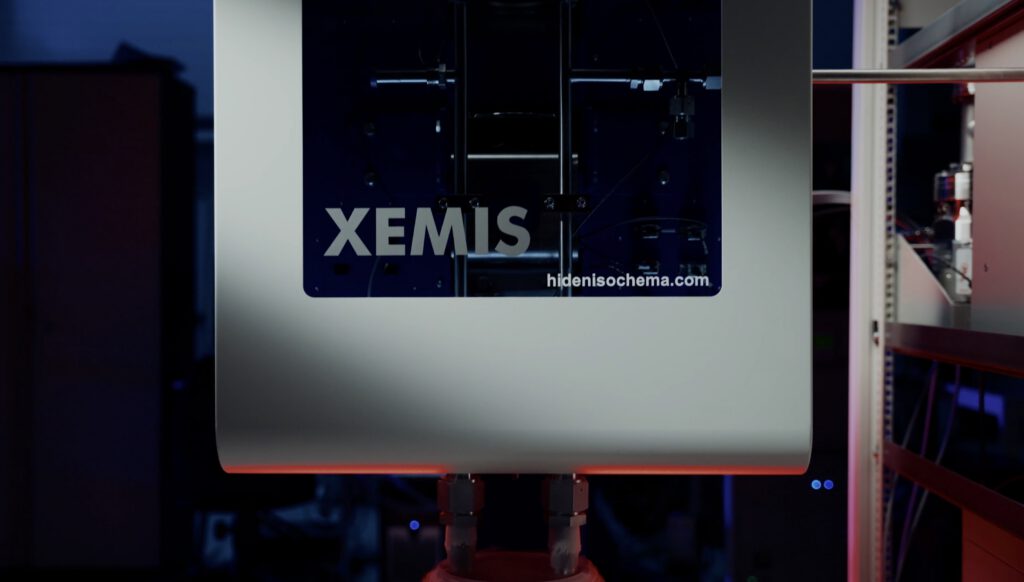

XEMIS Series
Next Generation Gravimetric Sorption Analyzers
Advanced gravimetric gas and vapor sorption analyzers for the precise characterization of sorption equilibria and kinetics
- Gas sorption isotherms
- Vapor sorption
- High pressure TGA
- Isobaric and isothermal analysis
- Sorption kinetic studies
- Specific surface area analysis
- Porous materials
- Gas separation
- Hydrogen storage
- Gas solubility
- Petrochemicals
- Polymers
- Catalyst characterization
- Building and construction materials
- Natural materials
- Energy and environment
Models
Each XEMIS model benefits from the same key performance: exceptional weighing stability, precise temperature and pressure control, and unrivalled measurement accuracy.
-
View ProductNext generation gas sorption analyzer
XEMIS-001
Advanced gas sorption analyzer with next generation microbalance design for high pressure and corrosive capability
- Gas sorption with active pressure regulation over 7 orders of magnitude
- Unique Exosensing Technology for operation with aggressive species
- Optimized performance for sample sizes from 1 mg to 5 g
-
View Product
Next generation gas and vapor sorption

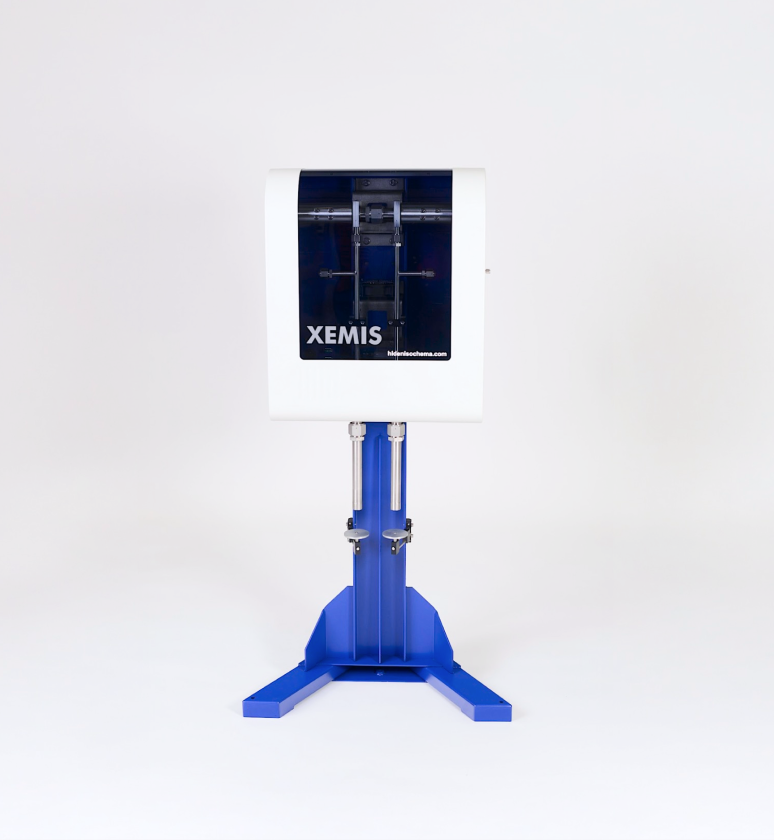

XEMIS-002
High resolution gas and vapor sorption analyzer, with next generation microbalance design for high pressure and corrosive capability
- Gas and vapor sorption with active pressure regulation over 7 orders of magnitude
- Unique Exosensing Technology for operation with aggressive vapor and gas species
- Optimized performance for sample sizes from 1 mg to 5 g
-
View Product
Next generation gas sorption analyzer
XEMIS-003
Versatile pure and mixed gas sorption analyzer, with next generation microbalance design for high pressure and corrosive capability
- Pure and mixed gas sorption at pressures to 200 bar
- Unique Exosensing Technology for operation with aggressive species
- Optional mass spectrometer for integrated high pressure TGA
-
View Product
Next generation gas and vapor sorption
XEMIS-100
Advanced gas and vapor sorption analyzer with high pressure TGA function
- Gas sorption at pressures to 200 bar
- High resolution vapor sorption
- Optional mass spectrometer for evolved gas analysis

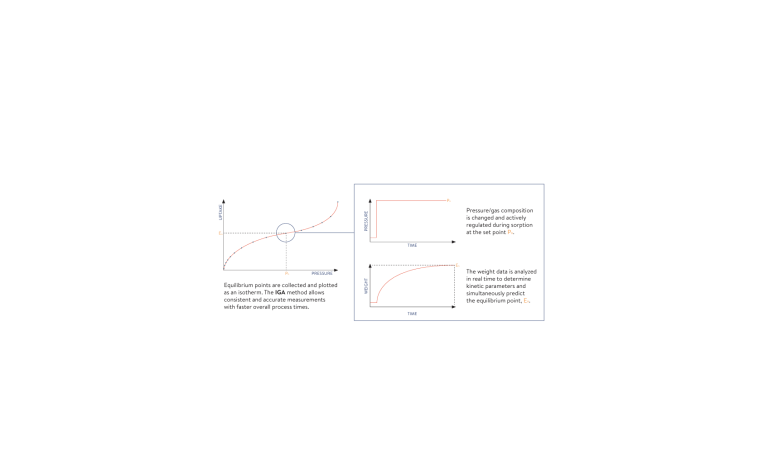

The IGA method
The XEMIS employs the unique IGA method to determine both sorption kinetics and equilibrium isotherms with exceptional accuracy. By optimizing how equilibrium is detected, the IGA method delivers high quality endpoint determination, consistent results, and shorter measurement durations.
Real-time kinetic analysis is achieved through continuous monitoring of weight-time data. The software models this data and predicts the trend toward equilibrium, which is clearly displayed on-screen. Objective equilibrium criteria are automatically applied to determine the optimal point to proceed – ensuring reliable, repeatable measurements.
software
XEMIS gravimetric sorption analyzers are supplied with Hiden Isochema’s powerful HIsorp application software:
-
Intuitive operation
From sample loading to advanced programming, all operations are intuitive with embedded help available
-
Isotherm programming
Isotherm programming is straightforward, with standard templates provided for ready adaptation to specific applications
-
Method development
Full programmability allows method development by advanced users
-
Isotherm modelling
Extensive range of isotherm models included, with experimental data fitting
-
Kinetic analysis
Powerful kinetic analysis function with single and stretched exponential models
-
Thermodynamic analysis
Determination of isosteric enthalpy and entropy of sorption from measured isotherms
-
Diffusion coefficient
Determination of Fickian diffusion coefficients for 2D and 3D samples
-
Full automation
Full automation allows extended duration measurements including cyclic life studies to be programmed
-
Audit trail
Data security, user management and audit trail features ensure data integrity
