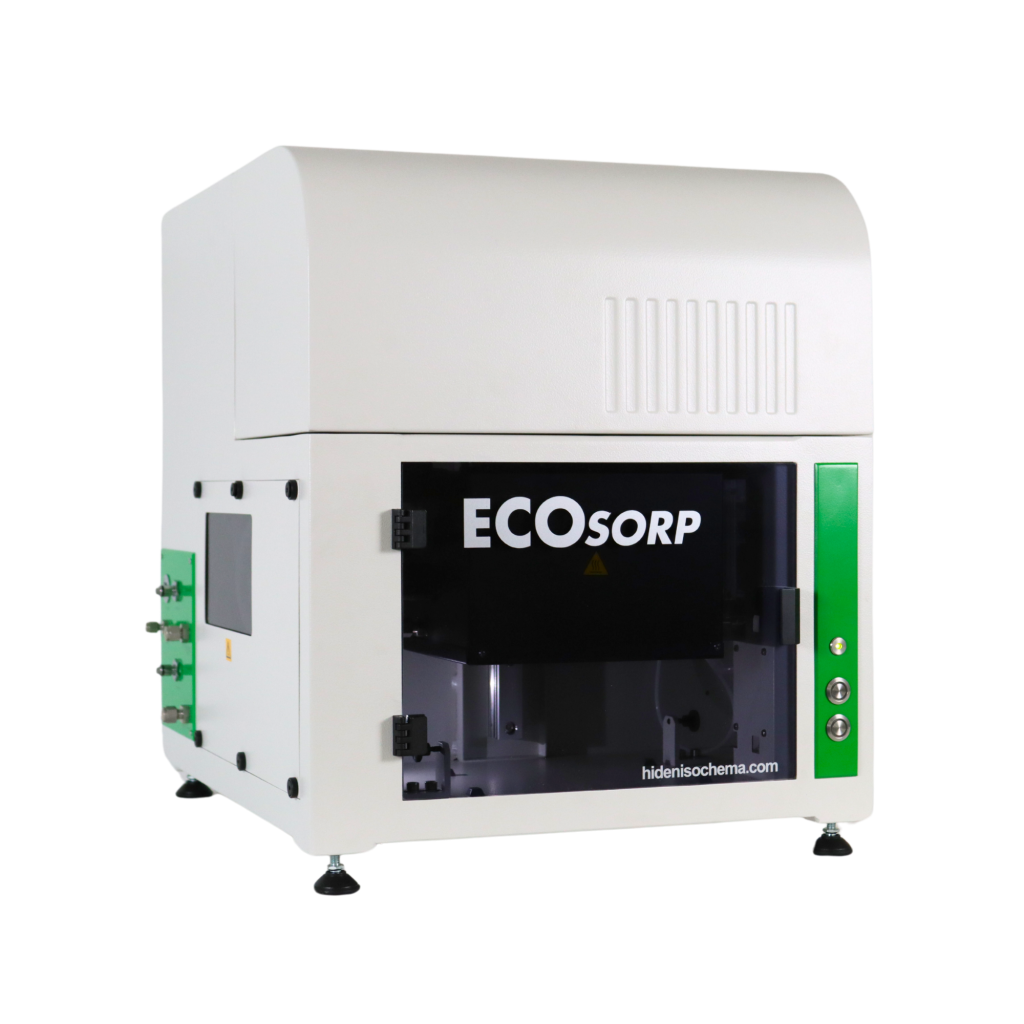

IGA ECOSORP

Dynamic Gas and Vapor Sorption Analyzer

Dedicated gravimetric analyzer for carbon capture applications

Water and carbon dioxide co-adsorption under carbon capture conditions
Highly flexible partial pressure control from 100 ppm to 100 % carbon dioxide
Unparalleled flow regulation accuracy via barometric compensation technology

Request a quote Download Brochure

Key features

Combined DVS water sorption with high resolution gas sorption
Independent control of CO₂ and H₂O concentrations for single and multi component studies
Widest controllable CO₂ partial pressure range of any dynamic sorption analyzer
Unique barometric compensation technology for accurate CO₂ flow regulation
Advanced thermostat design for long term stability
Complete automation for high resolution isothermal and long term cycling studies
Fully programmable for advanced method development
In-situ degassing and activation to 350 °C

Applications

A dedicated gravimetric analyzer for carbon capture applications, the IGA ECOsorp allows candidate sorbents to be characterized under conditions relevant to carbon capture, utilisation and storage, with a focus on direct air capture (DAC) and post-combustion capture (PCC) conditions.

Carbon Capture, Utilization and Storage (CCUS)
Sorbent material characterization and benchmarking
Response tests under controlled Direct Air Capture (DAC) and Post-Combustion Capture (PCC) conditions
Cycling stability testing – assessing how materials perform over multiple adsorption/desorption cycles
Studies of degassing, activation and regeneration kinetics
Thermal stability – identifying changes in sorption behavior after repeated regeneration cycles
Thermodynamic assessment (enthalpy of sorption)
Energy and environment

Sample types

Many different material types are used in carbon capture applications, and the IGA ECOsorp is equipped to characterise all types – ranging from liquid-phase solvents, solid-phase adsorbents, and membranes:

Aqueous amines
Ionic liquids
Metal Organic Frameworks (MOFs)
Covalent Organic Frameworks (COFs)
Zeolites
Activated carbon/biochar
Amine-functionalized materials
Layered Double Hydroxides (LDHs)
Mesoporous silica
Membranes – polymer, mixed-matrix, and carbon molecular sieves

Description

Introducing IGA ECOsorp

The IGA ECOsorp is a new benchtop sorption analyzer for carbon capture research. Combining high resolution gravimetric water sorption with precise CO₂ gas sorption under dynamic flow conditions, the IGA ECOsorp offers an affordable and practical solution for assessment of candidate carbon capture sorbent performance across Direct Air Capture (DAC) and Post Combustion Capture (PCC) conditions.

Carbon dioxide and water vapor concentrations are individually controlled, with CO₂ partial pressures from 100 ppm upwards and independent humidity regulation allowing accurate assessment of material performance. Measurements are fully programmable and can be made at temperatures from 5 to 85 °C, with an integrated heater allowing in situ degassing, activation and regeneration at temperatures up to 350 °C.

Request a quote Download Brochure

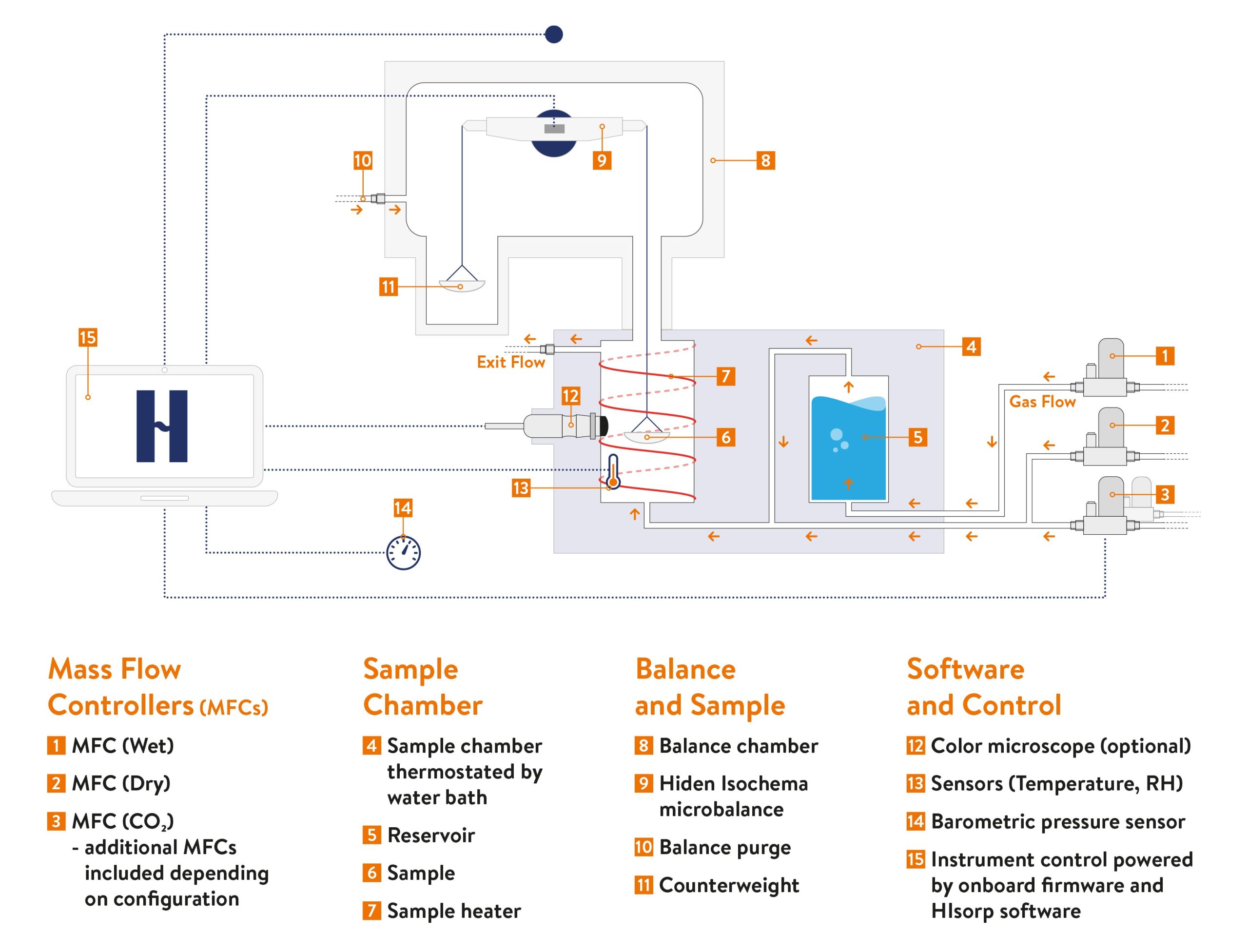

How does it work?

Request a quote Download Brochure

ENVIRONMENTAL CONDITIONS

Exceptional thermal and humidity control.

The IGA ECOsorp’s measurement chamber houses the sample reactor, vapor generator and humidity sensor, delivering tightly regulated 5 to 85 °C control with ±0.01 °C stability for long‑duration reproducibility. It also provides the broadest temperature–humidity operating space among conventional DVS systems for CCUS, enabling safe, stable operation up to 98 %RH at 80 °C and 85 %RH at 85 °C through its robust humidity‑generation and thermal‑management architecture.

The IGA ECOsorp also includes an integrated heater with a maximum temperature of 350 °C as standard, enabling: sample drying and activation, thermal regeneration, thermal desorption and TGA type experiments.

GAS CONTROL AND BAROMETRIC COMPENSATION

True partial pressure control from 100 ppm to 100%

The IGA ECOsorp achieves unmatched flexibility in gas control with a four inlet system, allowing CO₂ partial pressures from as low as 100 ppm (0.01%) up to 100% – all from standard pure gas supplies.

A built-in barometric pressure sensor is used to convert concentration into true partial pressure. This unique barometric compensation technology automatically adjusts CO₂ delivery in real time, ensuring accurate measurements regardless of ambient pressure fluctuations.

Hiden Isochema Microbalance

Unrivalled sensitivity and long term-stability

Every IGA ECOsorp uses a high precision microbalance engineered by Hiden Isochema to record sample mass changes as the environmental conditions change. Renowned for long-term stability and exceptional sensitivity, it enables detection of microgram-level weight changes. With balance temperature controlled separately from measurement temperature,  you can trust every data point.

HIsorp Software for IGAsorp

User friendly, versatile sorption software

HIsorp is the all-in-one platform for sorption analysis, covering everything from method setup to deep data insights. Fully supported and Windows compatible, it’s built for reliability and future ready performance.

Flexibility: Create multi-step routines for isothermal sorption, thermal desorption, cyclic testing and more.

Advanced control: Configure multi-step routines with full control over temperature, vapor pressure and flow rates.

Analysis tools: Real-time isotherm updates, kinetic modelling, surface area calculations, thermodynamic evaluations and more.

Request a quote Download Brochure

The IGA method

The IGA ECOsorp employs the unique IGA method to determine both sorption kinetics and equilibrium isotherms with exceptional accuracy. By optimizing how equilibrium is detected, the IGA method delivers high quality endpoint determination, consistent results, and shorter measurement durations.

Real-time kinetic analysis is achieved through continuous monitoring of weight-time data. The software models this data and predicts the trend toward equilibrium, which is clearly displayed on-screen. Objective equilibrium criteria are automatically applied to determine the optimal point to proceed – ensuring reliable, repeatable measurements.

Specifications

Weighing

Capacity5 g
Weighing range25, 200 or 1000 mg (fixed) or user selectable (optional)
ResolutionFrom 0.05 µg
Balance noise< 0.1 µg RMS over 24 hours

Temperature

Isothermal measurement chamber with recirculation bath and integrated heater
Temperature control range 5 to 85 °C, 5 to 300 °C (with Climate-XT operating mode)
Sample temperature stability ± 0.01 °C
Temperature resolution0.01 °C
Location of sample temperature measurement< 10 mm from sample
Pre-heaterIncluded, to 350 °C

Humidity

RH control range0 to 98 %RH for 5 to 80 °C, 0 to 85 %RH at 85 °C
Maximum water vapor partial pressure of 500 mbar
RH performance± 0.5 %RH (based on factory conformance testing at standard conditions)
RH resolution± 0.01 %RH
RH control stability± 0.01 %RH
Location of sample RH measurement< 10 mm from sample

Gas Flow

Number of inlets3 (standard), 4,5 (optional)
Carrier gas supply (2 inlets)Dry air, nitrogen or helium
Carrier gas flow rate 100 – 500 mL/min (programmable)
CO₂ gas supply Dry carbon dioxide
CO₂ control range3 inlet option: choice of 100 ppm to 10,000 ppm or 0.2 to 100 %
4 inlet option: 100 ppm to 100% with automatic inlet selection
Additional gas supply Other atmospheric gas species
Partial pressure determinationFlow concentration with barometric compensation using barometric pressure sensor

GeneralOptions

Reservoir capacity150 mLVarious sizes and geometries of sample holders
Dimensions48 (w) x 55 (d) x 57 (h) cmDedicated membrane permeation cell
Electrical110 – 240 C a.c. 50/60 Hz, 500 W
Computer InterfaceTCP/IPand USB/RS232
